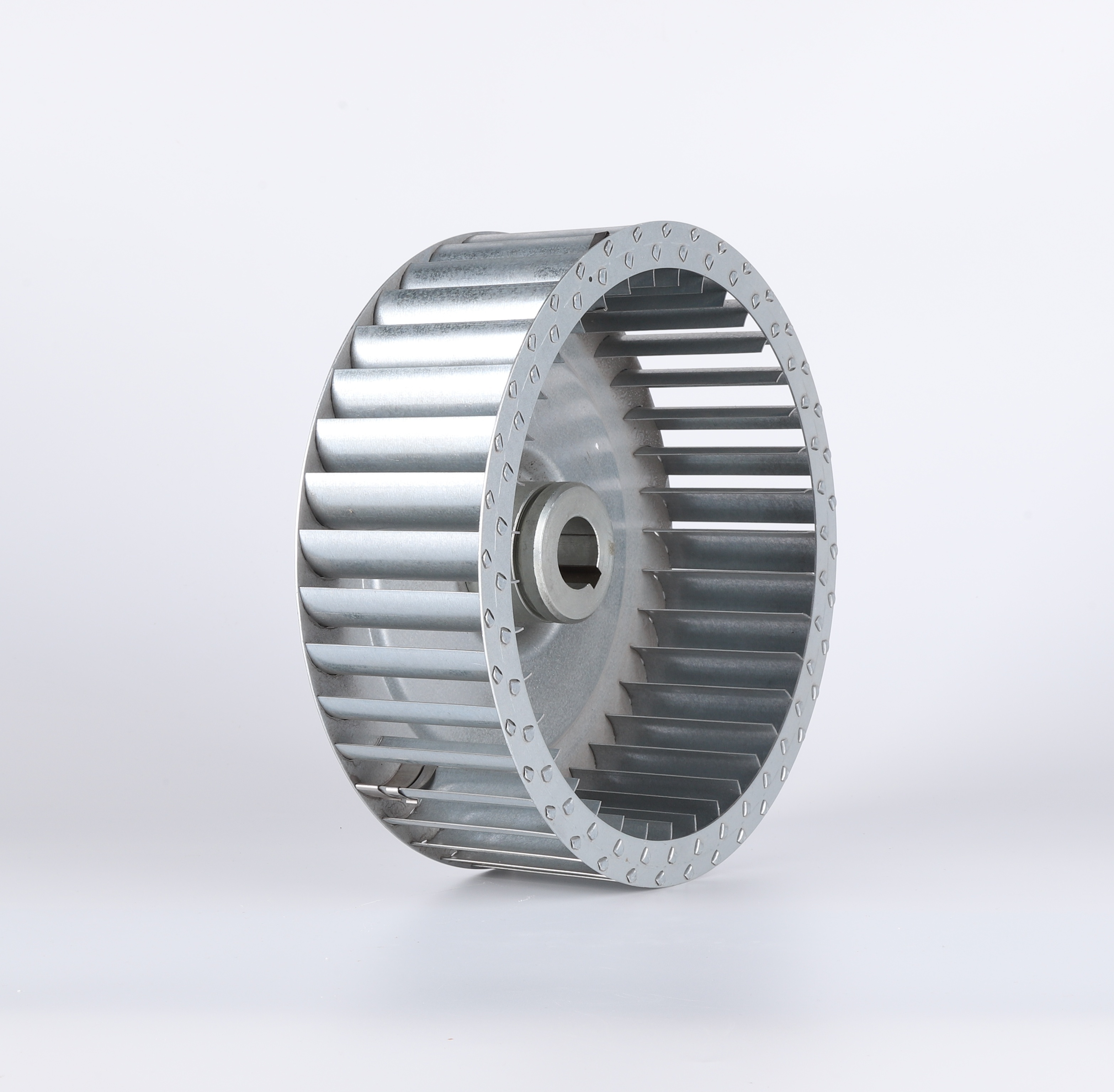

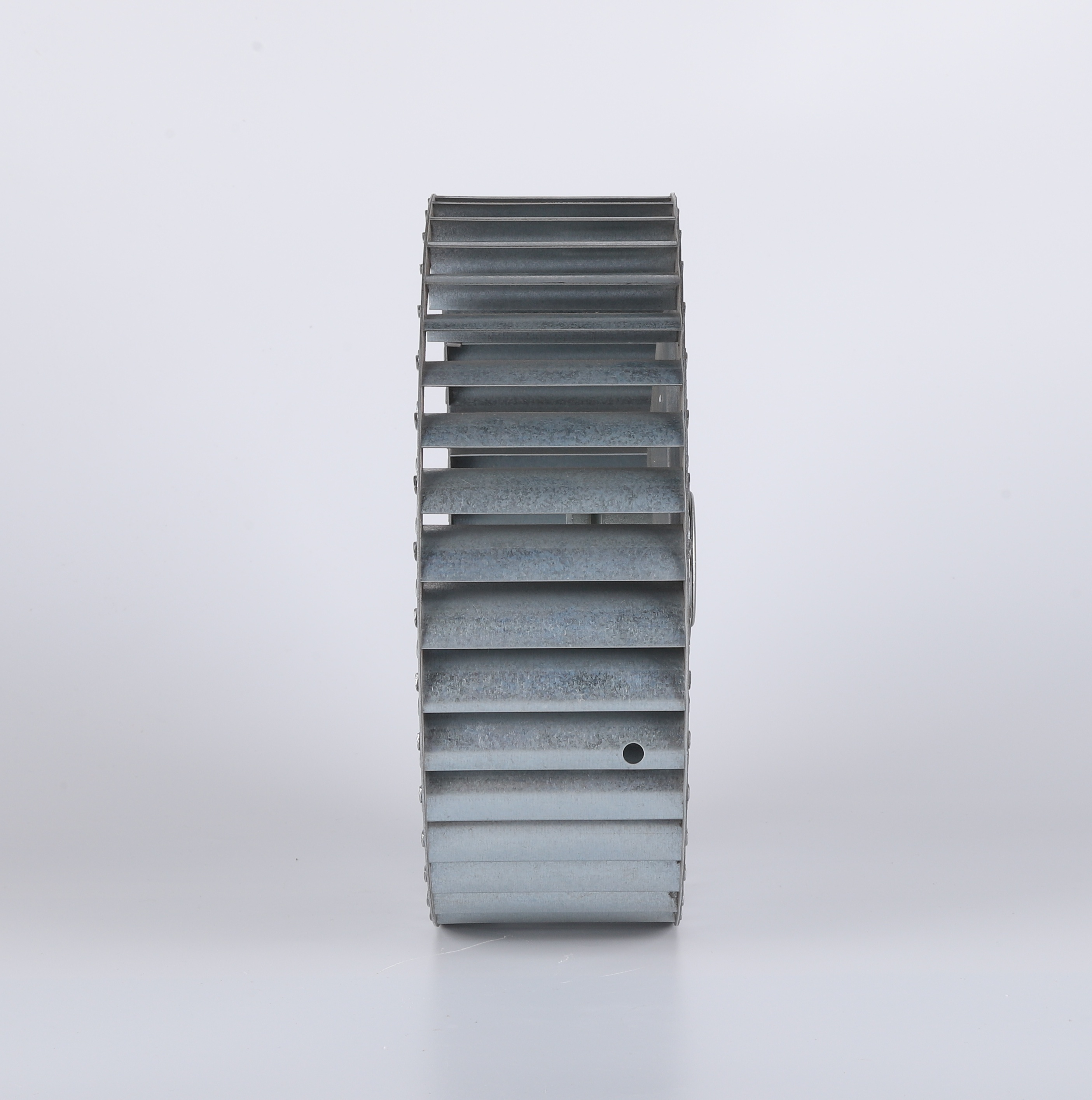

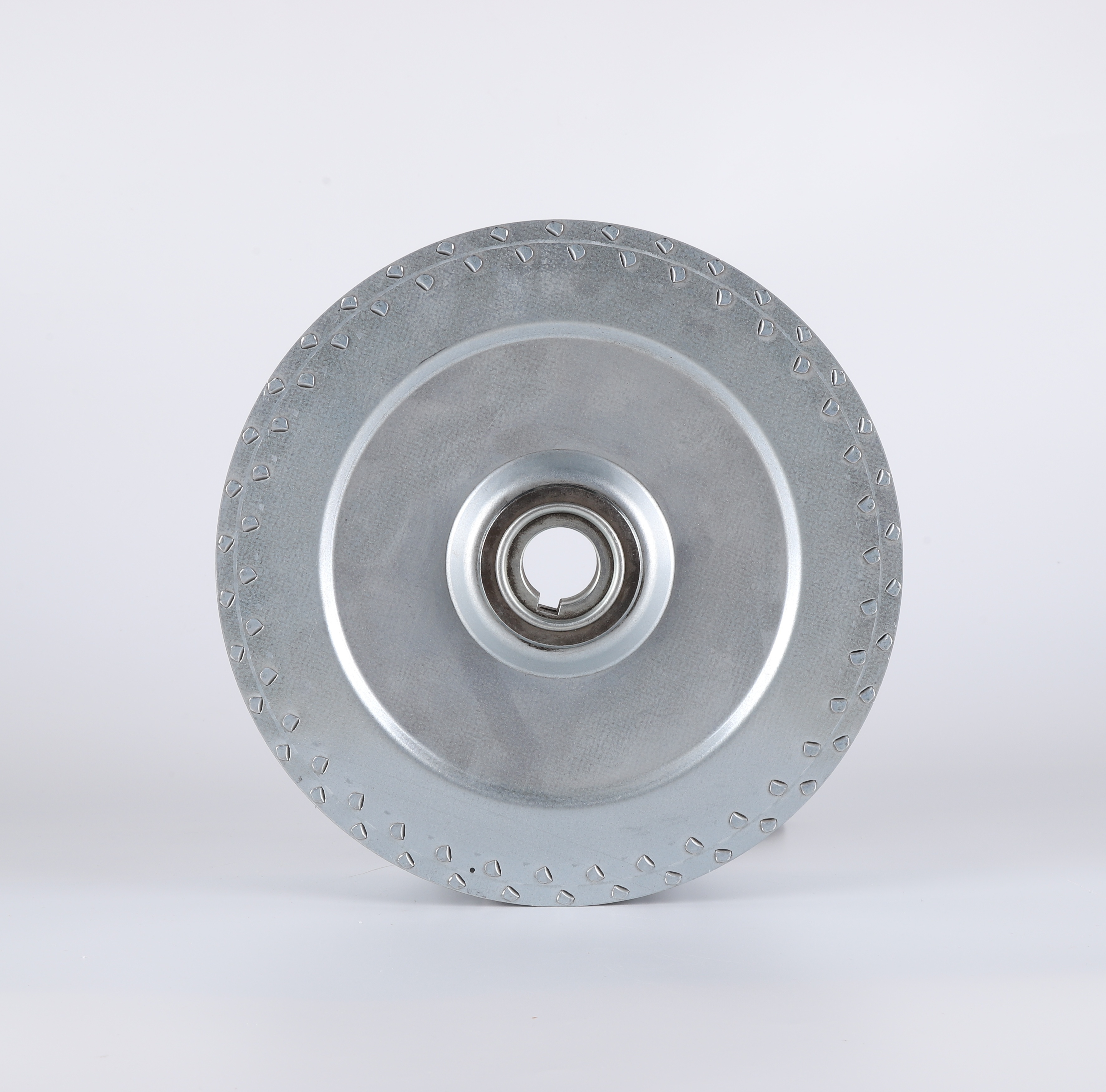

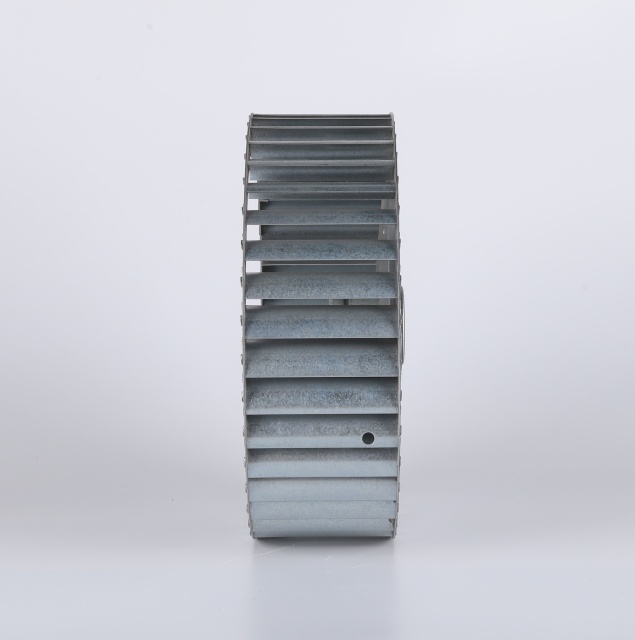

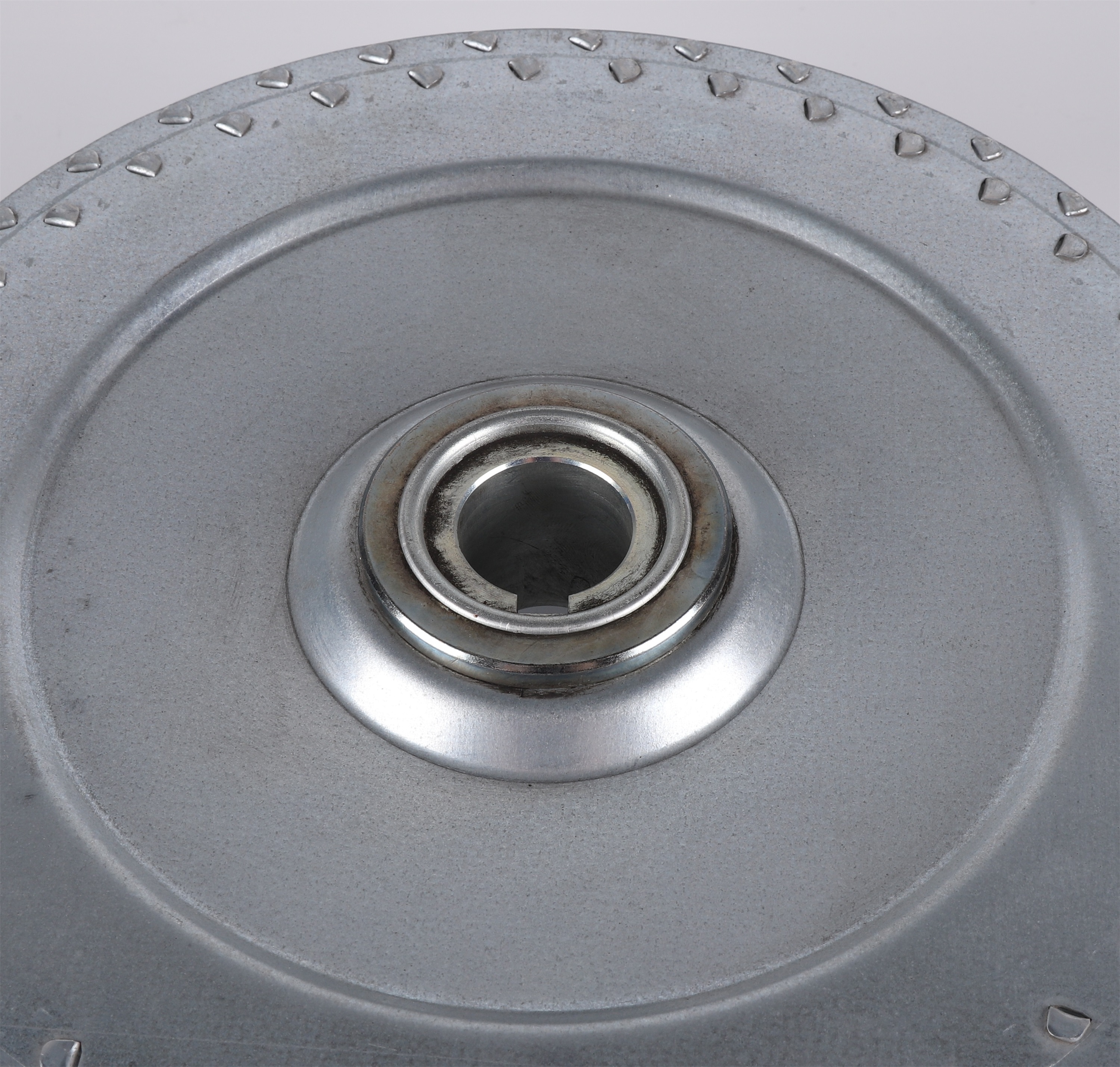

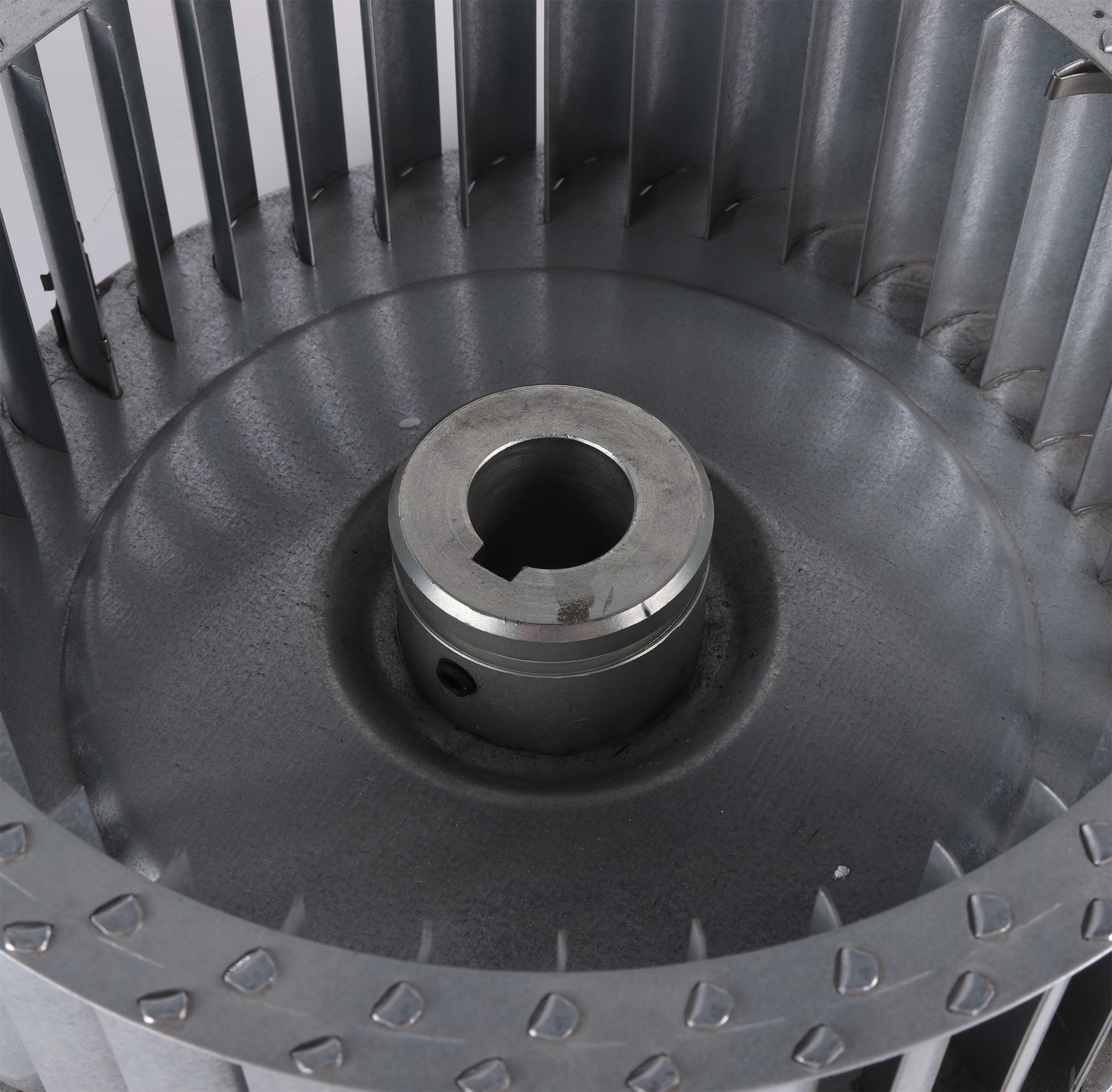

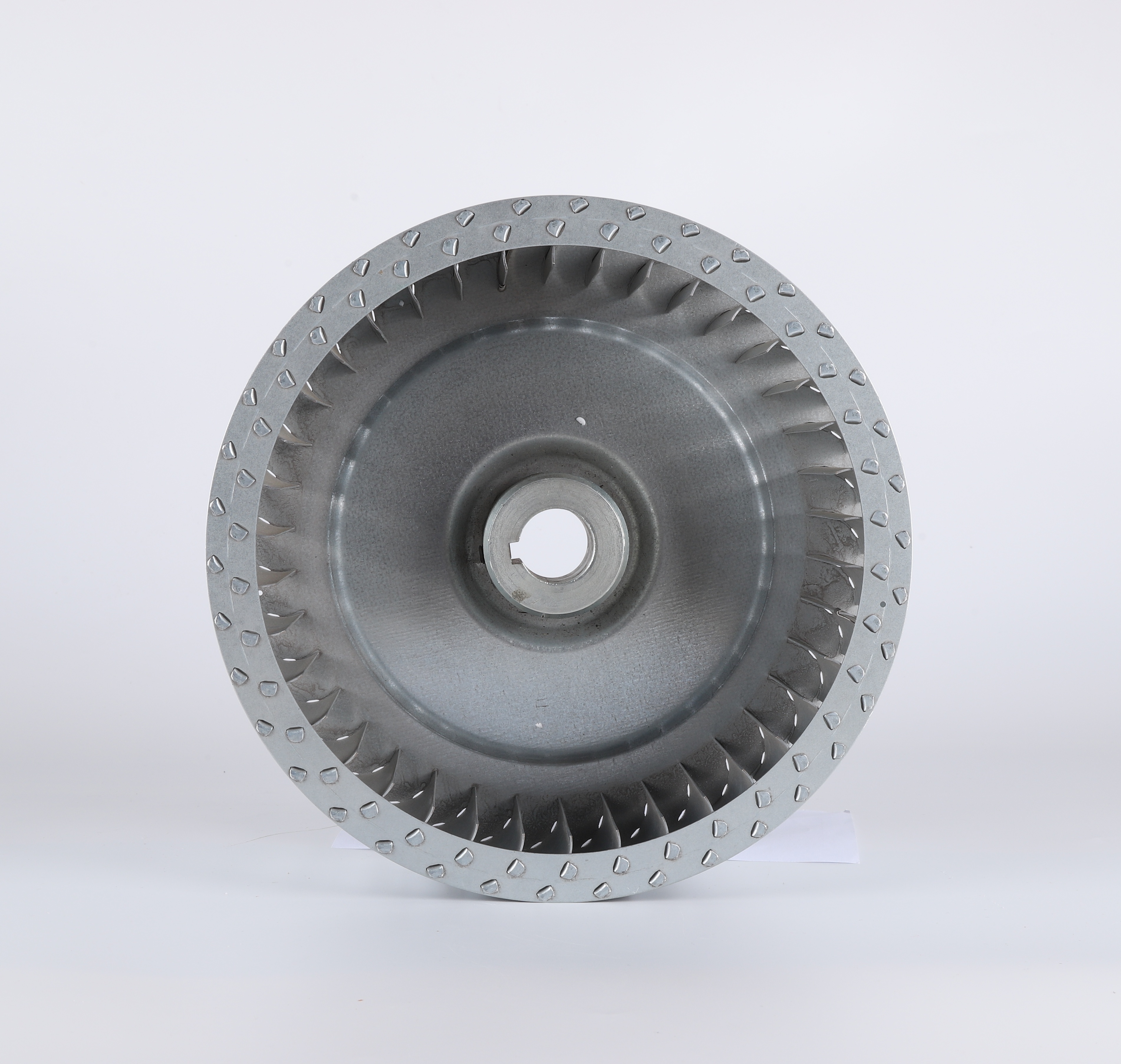

The fan wheel of a Marine boiler is composed of 12 beveled blades of a tilting wing welded in the middle of an arc-conical front disk and a flat-shaped rear disk. The structure makes the impeller rotate, filled with gas between the blades rotate with the impeller, under the action of centrifugal force, gas is thrown out from the groove between the blades, and the gas is transported out by the impeller outlet. When the outflow of gas causes a vacuum in the impeller space, the outside gas will automatically enter the impeller to supplement, thus realizing the transmission of gas. This type of impeller structure is commonly seen in centrifugal fans, such as induced draft fan, through the induced draft fan, spiral plate is properly thickened to prevent grinding, to ensure the effective operation of the fan and long service life.
Targeted Role in Marine Boiler Systems The Fan Wheel for Marine Boilers serves as an essential component specifically designed for marine boiler parts manufacturers and marine boiler spare parts supply chains. Its primary function is to optimize airflow by utilizing centrifugal force to compress or inhale gases, facilitating stable combustion within marine boilers. This component addresses the operational requirements of ship engineers, maintenance teams, and procurement managers seeking reliable marine boiler spare parts wholesale solutions that enhance system efficiency and meet stringent maritime standards. The wheel’s compatibility with centrifugal draft fans positions it as a crucial element in maintaining consistent boiler performance under demanding marine conditions.
Technical Composition and Performance Specifications Constructed from galvanized sheet and premium stainless steel alloys (201and 304), this fan wheel incorporates 12 beveled blades mounted between an arc-conical front disk and a flat rear disk. Its blade height of 8.2 cm, paired with a rotational speed of 3000 rotations per minute, generates high-speed, high-pressure airflow that promotes efficient gas transmission. The fan wheel benefits from a thickened spiral plate design that minimizes wear and prevents grinding damage, extending operational life. With precise dimensional parameters—including an external diameter of 25 cm and a balanced rotational mechanism—this marine boiler parts factory product delivers consistent mechanical reliability essential for system integration and optimized combustion control.
Industry Applications and Integration Benefits Within marine propulsion systems, this fan wheel plays a pivotal role in enhancing boiler combustion efficiency and preventing airflow loss in centrifugal fans. It supports operational workflows by sustaining high-pressure zones, thereby improving heat exchange and reducing fuel consumption. Suitable for retrofits or replacement in worn marine boiler parts wholesale inventories, this component ensures compliance with maritime operational standards and extends vessel service life. The integration into shipboard induced draft fan assemblies demonstrates measurable improvements in system stability and maintenance cycles, aligning with the expectations of shipyards and marine boiler spare parts manufacturers targeting durability and performance in challenging environments.
Working principle The principle of the fan impeller is mainly to use centrifugal force to compress or inhale gas, to produce high pressure or high-speed airflow. The working principle of the fan impeller can be summarized as follows: 1、The air enters the center of the fan, in the direction of the axis. 2、The air is caught by the high-speed rotating fins of the impeller and is attracted by the negative pressure difference between inside and outside. 3、The rotation of the impeller creates a centrifugal force, pushing the inhaled gas outward. 4、As the impeller rotates, air is pushed outside the centrifugal fan. 5、When the air flows out of the impeller tip, centrifugal force causes it to produce high speed, to form a high-pressure area. 6、At the exit of the centrifugal fan, high-speed flowing gas passes through the diffuser or diversion device, gradually slows down, and discharge the centrifugal fan.
Through the rotating movement of the impeller, centrifugal fan can compress or inhale the gas, produce high pressure or high-speed air flow. This working principle makes the impeller a vital part of the fan, can effectively convert and transfer energy, so as to achieve gas compression and flow.
Characteristic The characteristics of the fan wheel include high speed, static pressure, high efficiency and stable performance. Fan wheel is an important part of fan according to its design and application, can be divided into many types, including centrifugal fan, axial fan and mixed flow fan. These different types of impellers have their own characteristics and application scenarios.
FAQ
What materials are used in the construction of the Fan Wheel for Marine Boilers? The Fan Wheel is made from galvanized sheet and stainless steel types 201and 304, providing resistance against corrosion and wear in marine environments. These materials ensure the fan wheel meets the durability requirements for marine boiler parts under harsh operating conditions.
Is it possible to customize the Fan Wheel for different marine boiler applications? Yes, customization is available to suit various marine boiler specifications. JIEXI offers tailored solutions to meet specific system needs, so buyers seeking customized marine boiler spare parts supply should contact the company directly for detailed requirements and options.
How does the Fan Wheel contribute to the maintenance and efficiency of marine boilers? This Fan Wheel maintains high-pressure airflow by utilizing centrifugal force generated at 3000 rotations per minute. It helps prevent airflow loss and abrasion, thus extending the lifespan of marine boiler spare parts and improving combustion efficiency in boiler systems.
What logistics and delivery options are available for purchasing marine boiler parts from JIEXI? JIEXI supports a global customer base with efficient shipping and supply chain management for marine boiler parts wholesale. Orders are processed promptly to ensure timely delivery, especially for critical replacement components like the fan wheel, minimizing boiler downtime.
