Description
Structural Composition

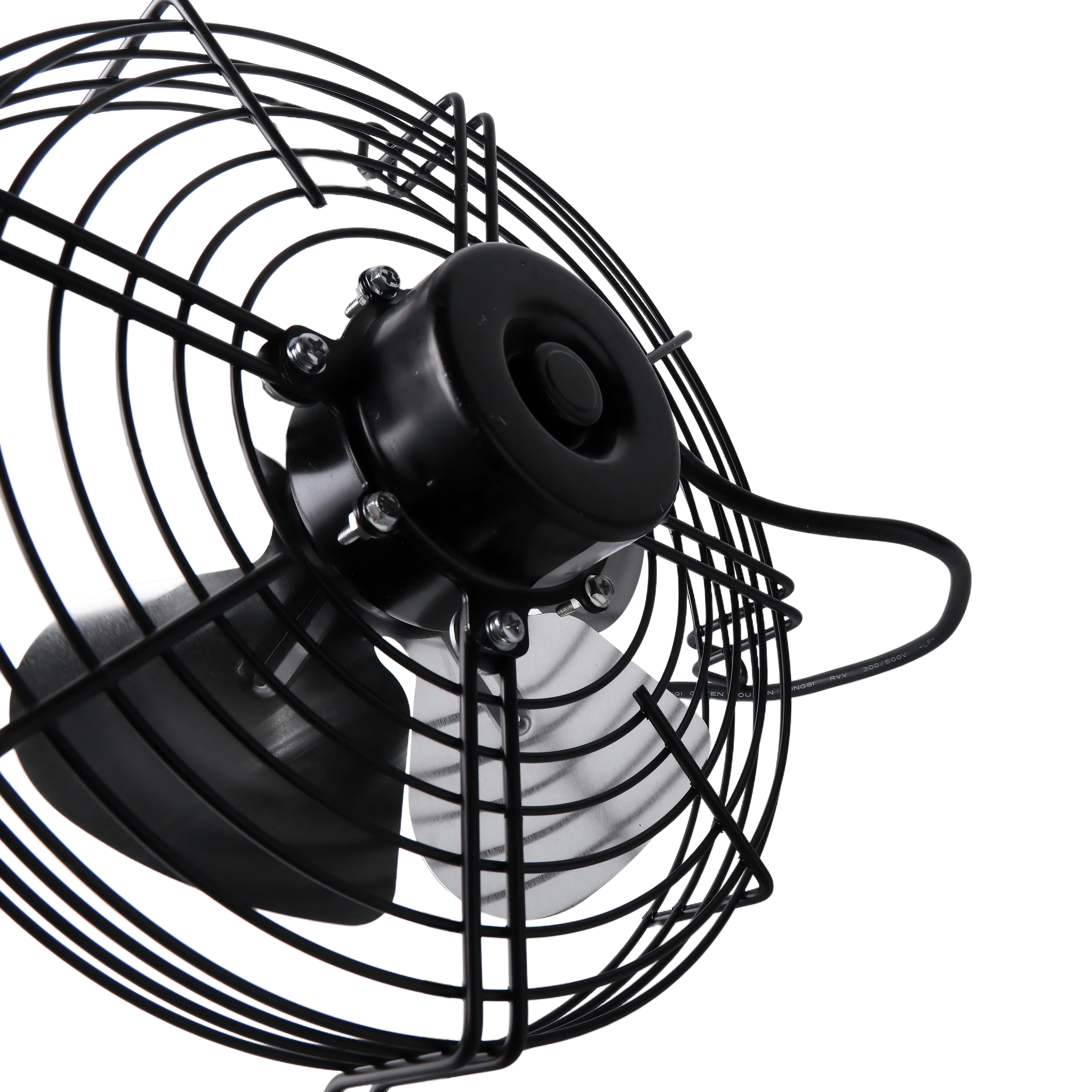

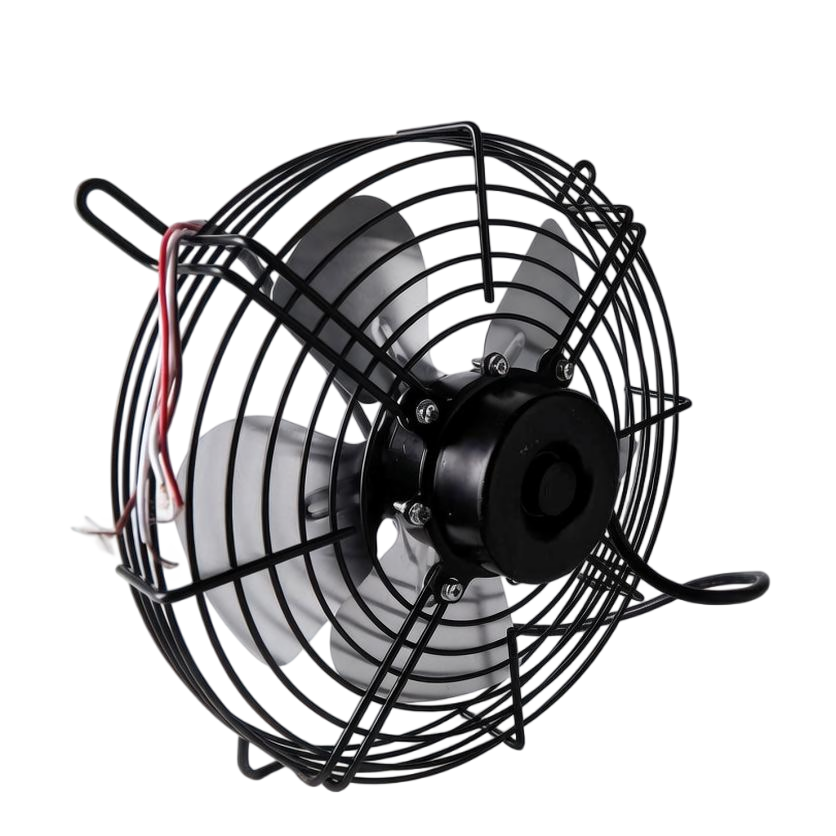

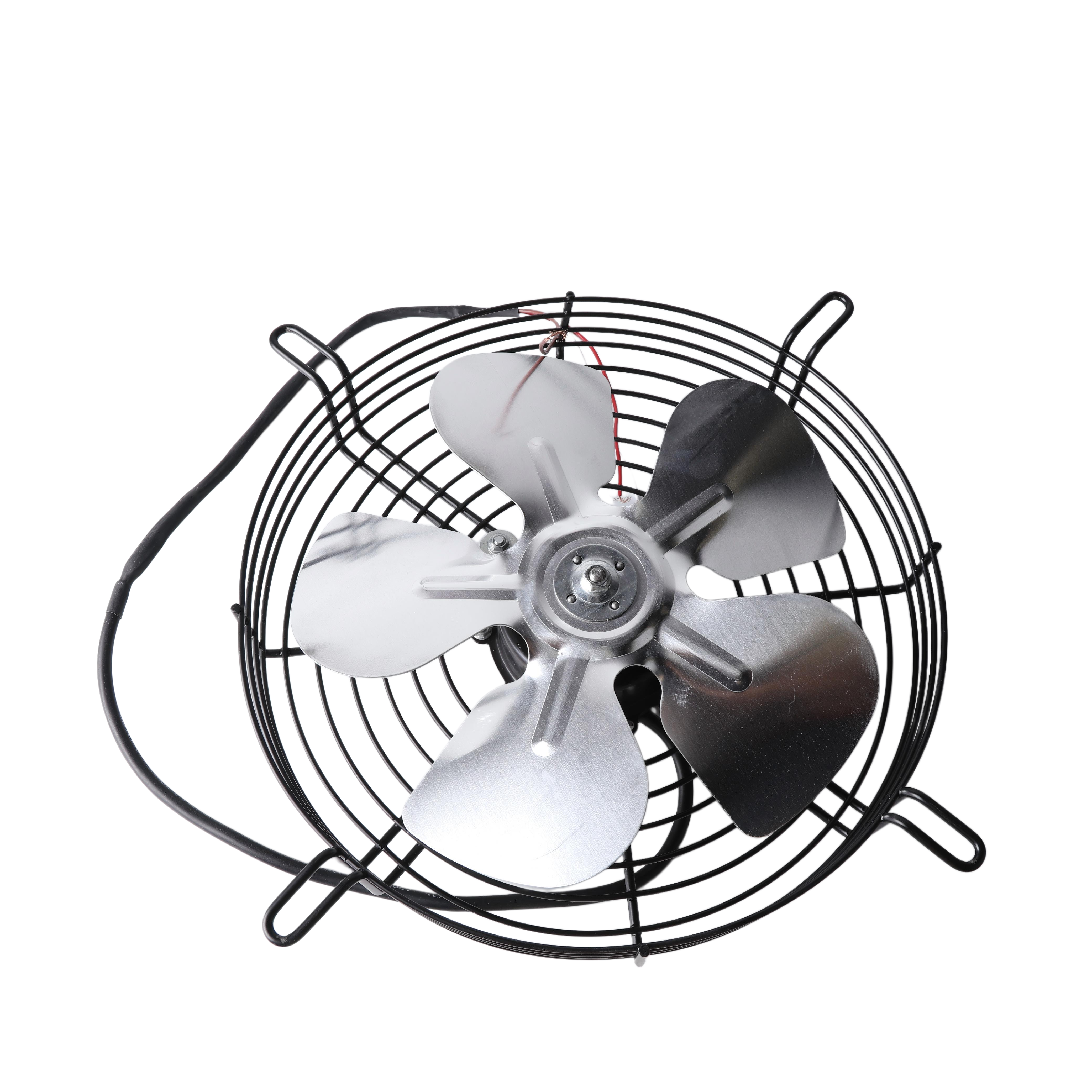

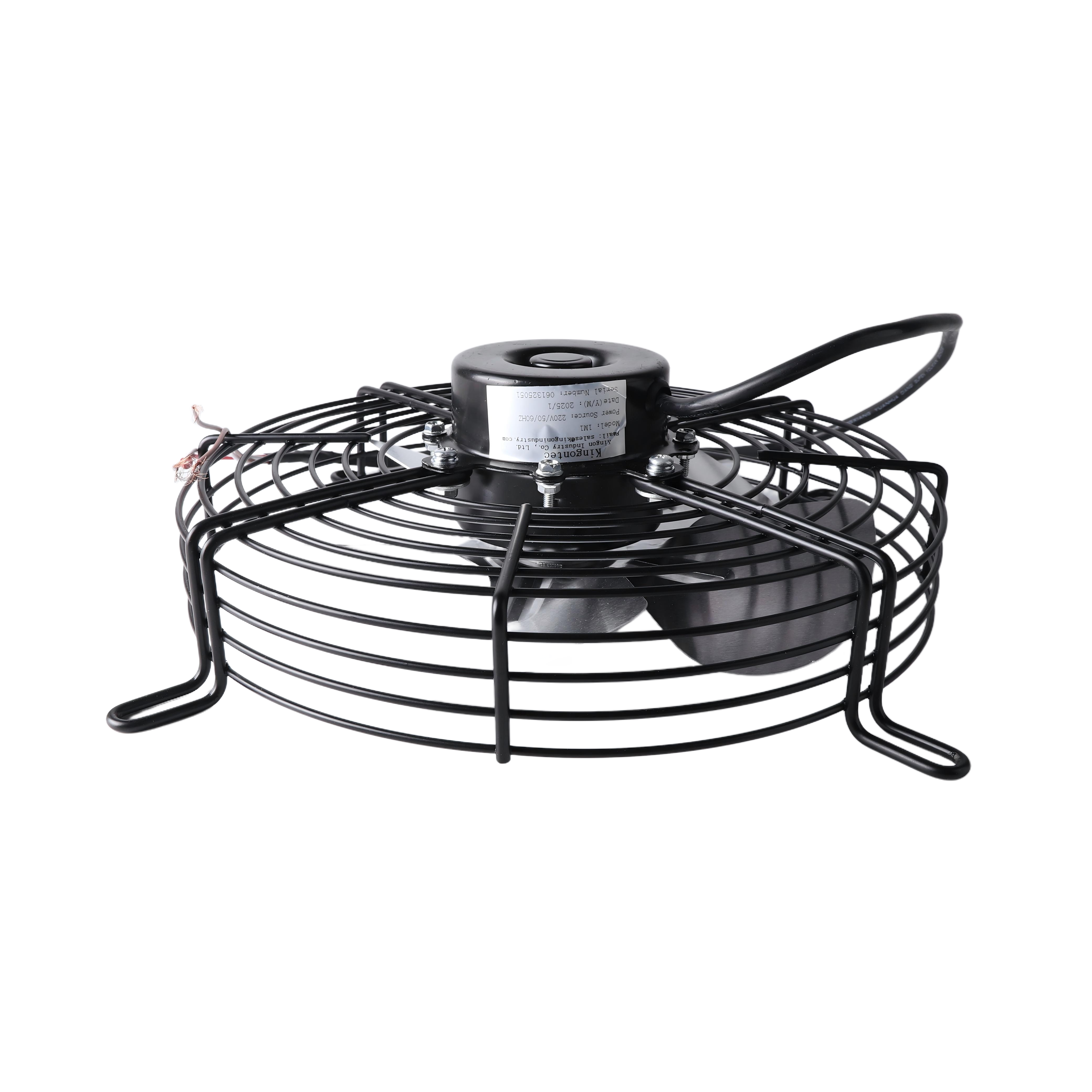

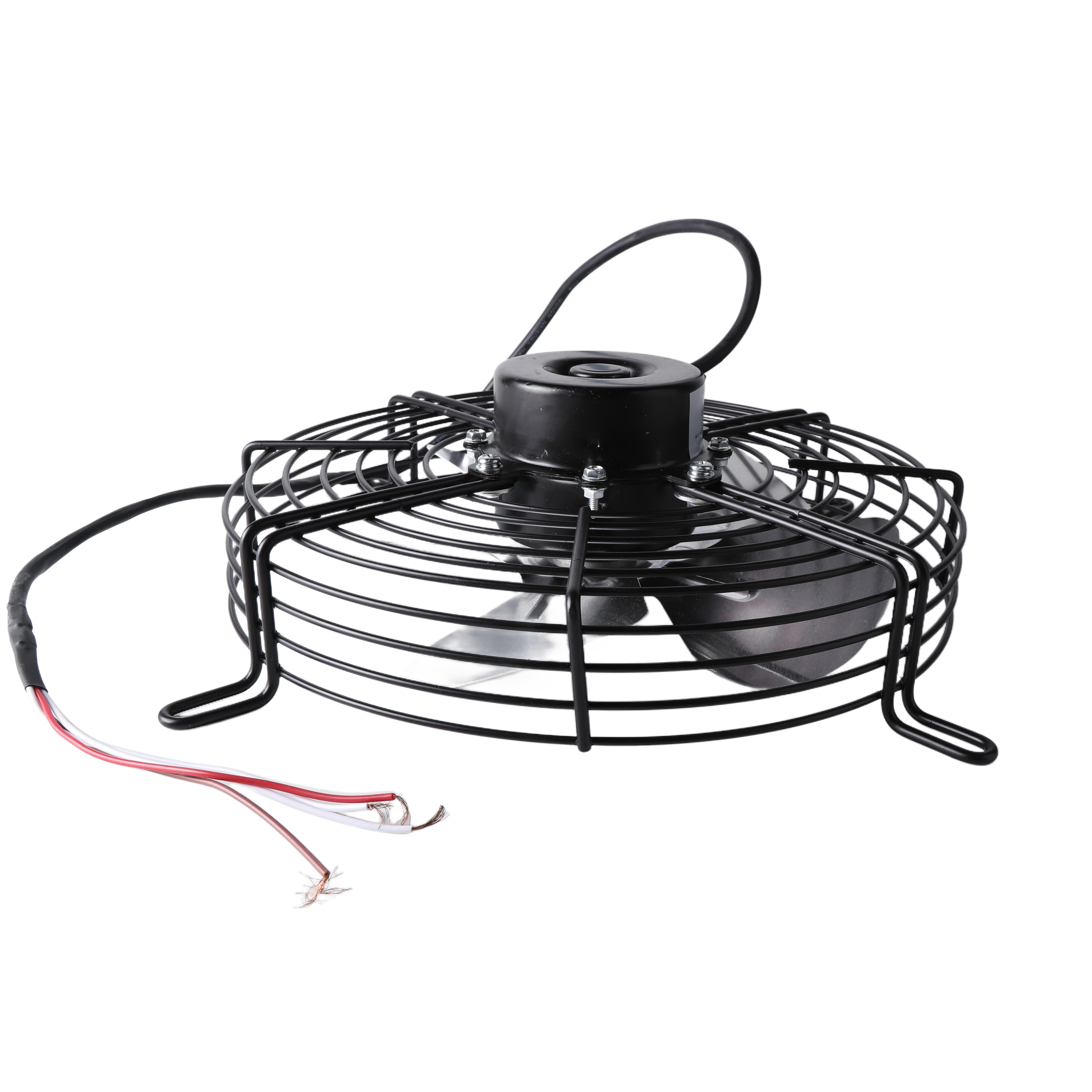

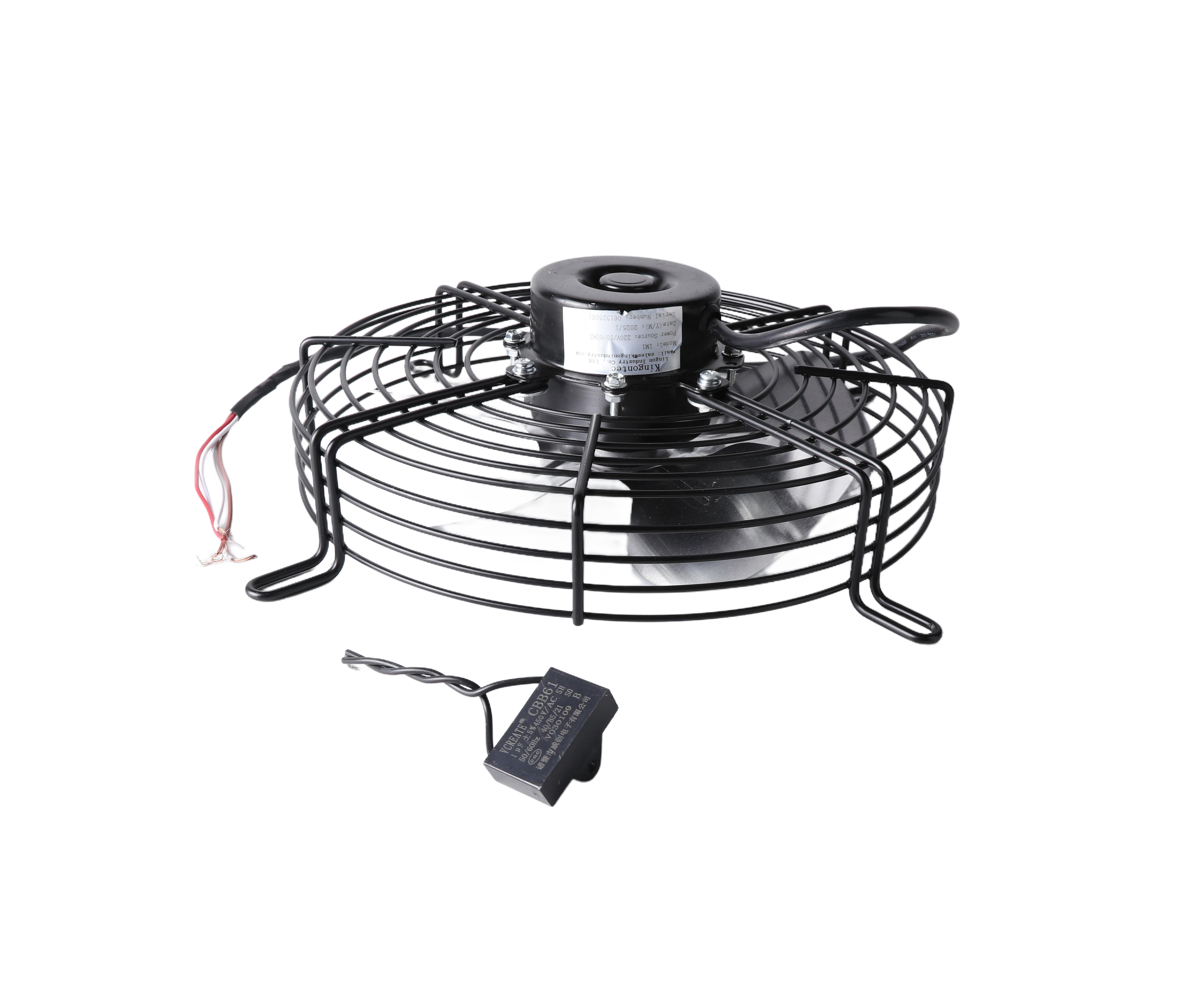

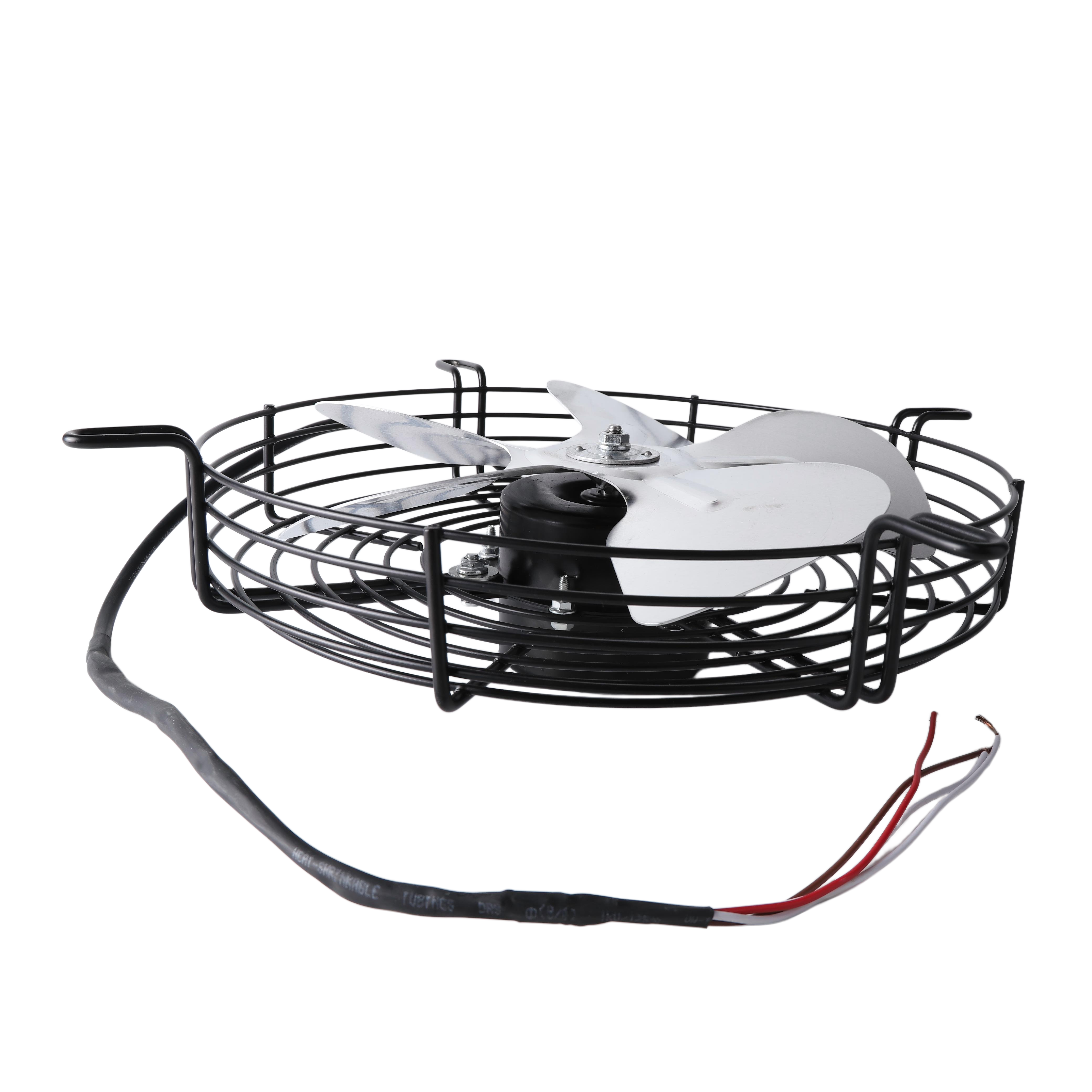

The motor assembly on the marine dryer is the core power unit that drives the operation of the equipment. Its structure, selection, and maintenance must strictly adapt to the high humidity, salt spray, and vibration environment unique to ships.
Motor body
Stator and rotor: The core electromagnetic components that are responsible for the conversion of electrical energy and mechanical energy.
Bearings: They support the rotation of the rotor and are typically equipped with high-precision, corrosion-resistant deep groove ball bearings or angular contact ball bearings.
Junction box: It is equipped with an IP55 or higher protection level. The internal wiring terminals are usually nickel-plated or silver-plated to prevent corrosion from salt fog, which could cause poor contact or short circuits.
Drive System
Coupling: Connects the motor and the reducer to transfer torque. In marine environments, elastic couplings are often selected to absorb ship vibrations and shocks.
Reducer: Reduces the high rotational speed of the motor to the low rotational speed required for the dryer to operate, and increases the output torque. Common types include cycloidal bevel gear reducers or gear reducers.
Protection and Heat Dissipation Structure
Enclosure: Usually made of high-strength cast iron or aluminum alloy, it possesses excellent mechanical strength and corrosion resistance. Some designs adopt a fully enclosed structure (without ventilation holes) to prevent moist air and salt particle droplets from entering the motor interior, which could cause insulation degradation or motor jamming.
Protection level: The standard protection level is typically IP55 (protects against dust and splashing water), and for special applications (such as submersible cement pumps), it can reach IP68. The junction box adopts a special sealing structure to prevent moisture from entering.
Common Faults and Maintenance
When the marine drying machine motor operates in harsh conditions, the following typical faults are prone to occur:
Insulation deterioration: Due to prolonged exposure to high humidity, the insulation resistance of the windings is prone to decrease, resulting in leakage or short circuits. It is necessary to measure the insulation resistance using an ohmmeter regularly (e.g. every quarter). If it is lower than 0.5 MΩ, drying treatment should be carried out.
Poor heat dissipation: Although the closed design is dust-proof, it has a high heat dissipation pressure. It is necessary to regularly clean the dust and oil stains on the surface of the casing to ensure that the heat dissipation fins are unobstructed.
Bearing abnormal noise or jamming: Salt spray intrusion or deterioration of lubricating grease can cause the bearing to rust. During maintenance, it is necessary to use lubricating grease with high temperature resistance and salt spray resistance (such as lithium-based grease), and regularly check if the sealing ring is aging.
Power phase deficiency and overload: Fluctuations in the ship's power grid or poor line contact can cause phase deficiency operation, which may lead to overheating and damage of the generator. In such cases, a phase deficiency protector should be installed, and the tightness of the connection terminals should be checked regularly to prevent loosening.
Poor heat dissipation: The fully enclosed structure experiences high heat dissipation pressure in high-temperature environments, which may cause the motor to overheat. It is necessary to regularly clean the heat dissipation channels and check if the cooling fans are operating normally to ensure smooth ventilation.
