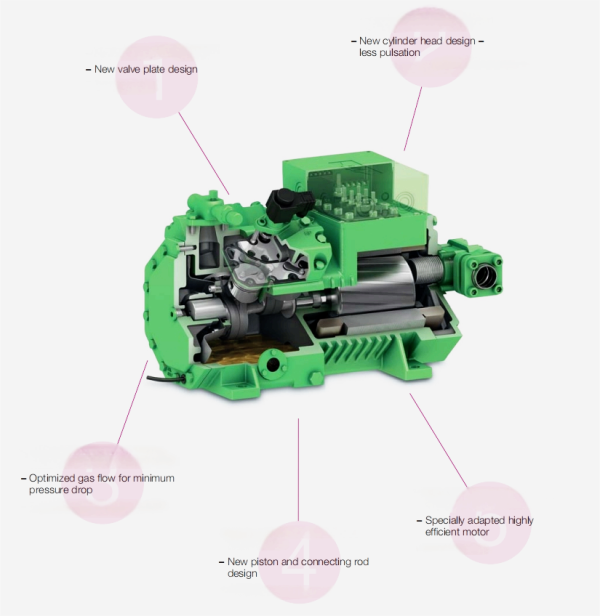

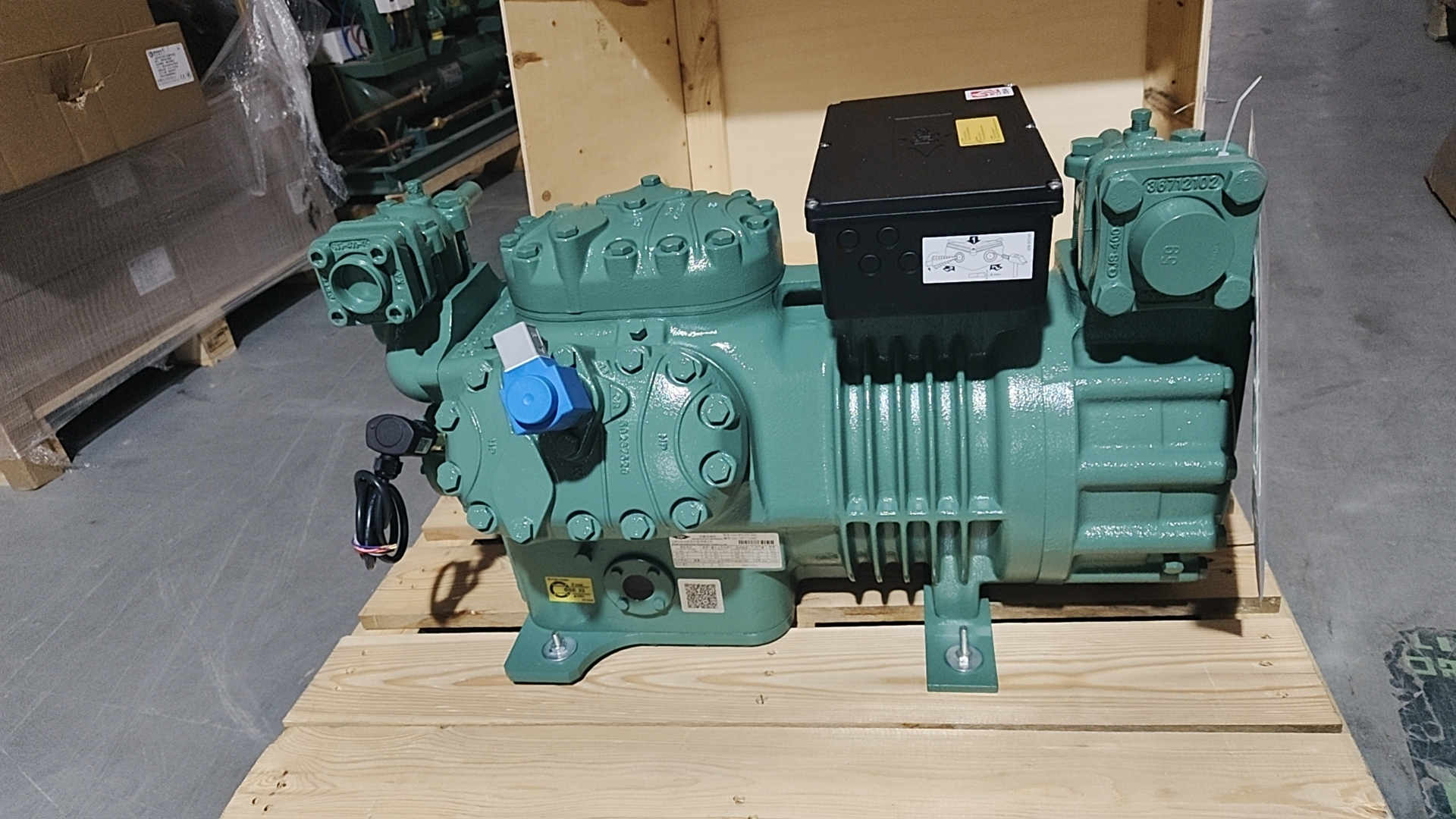

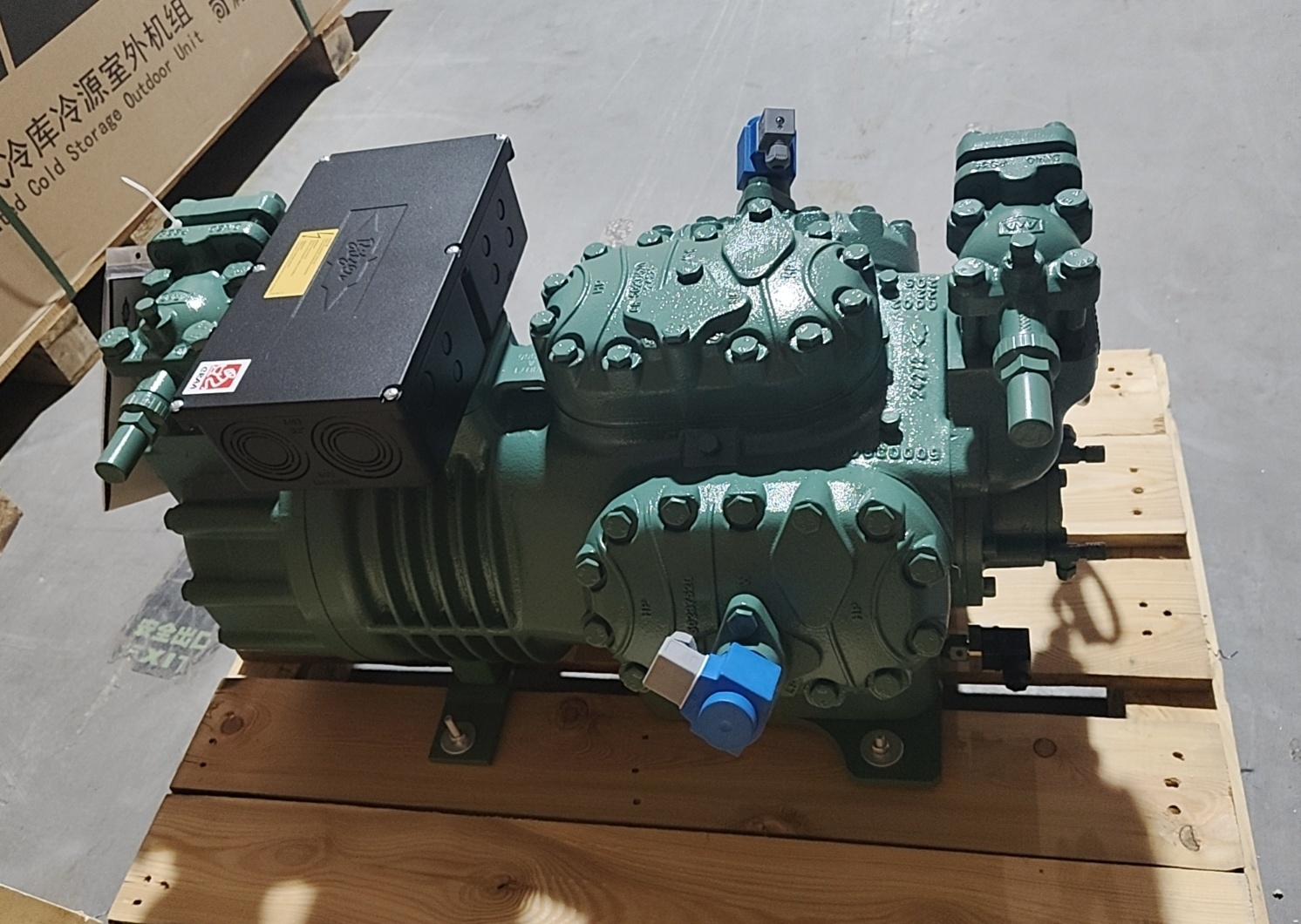

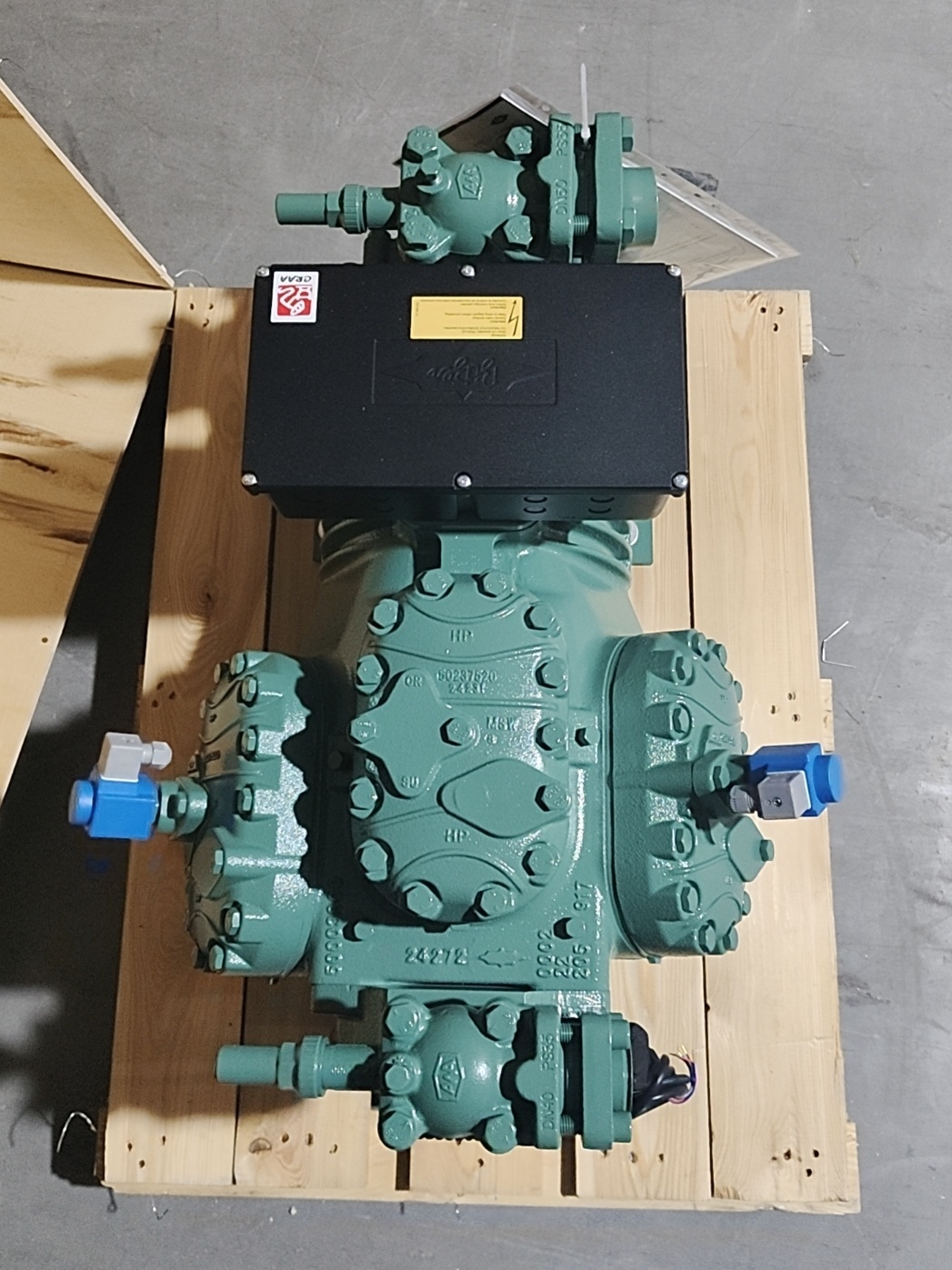

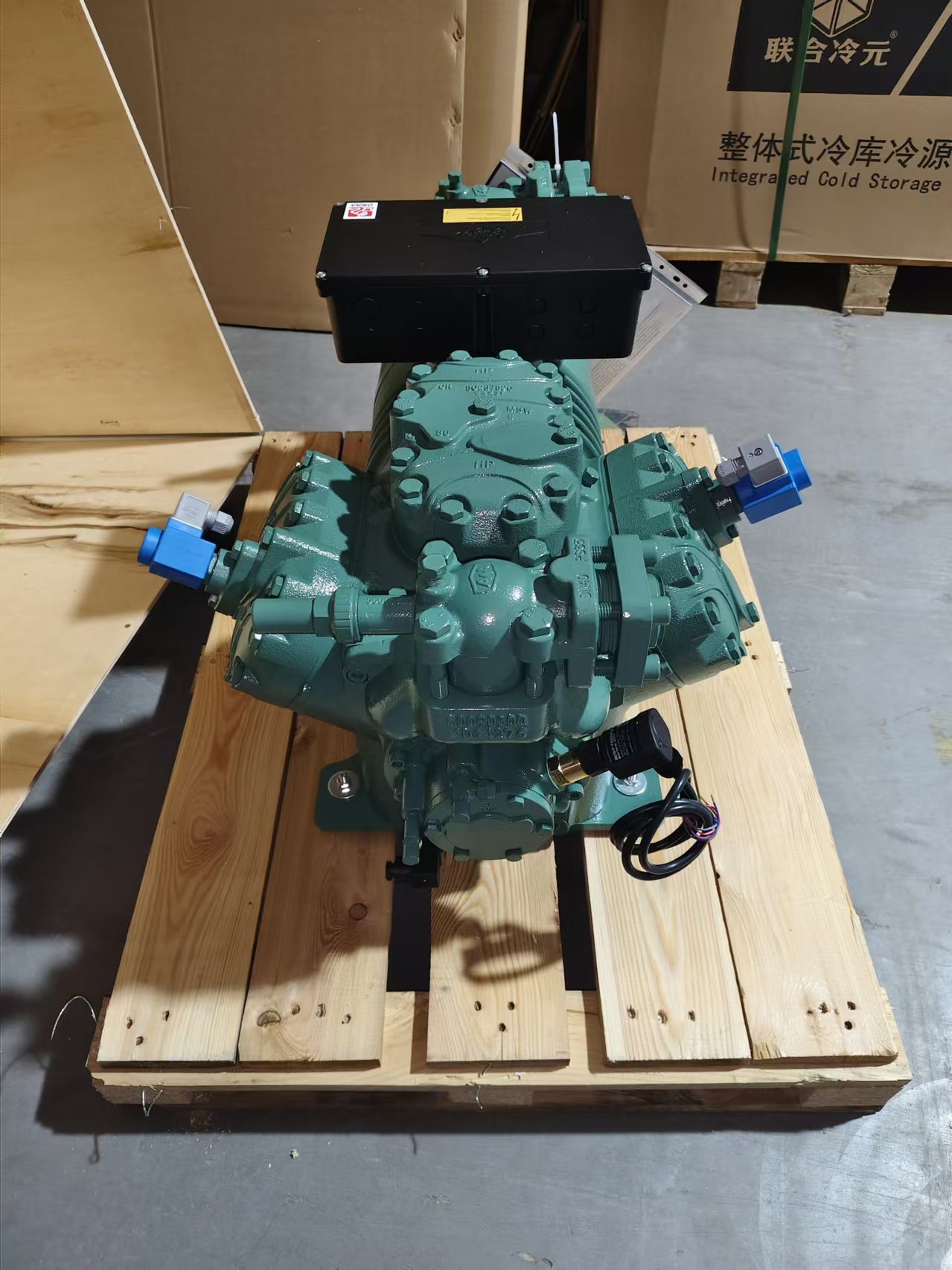

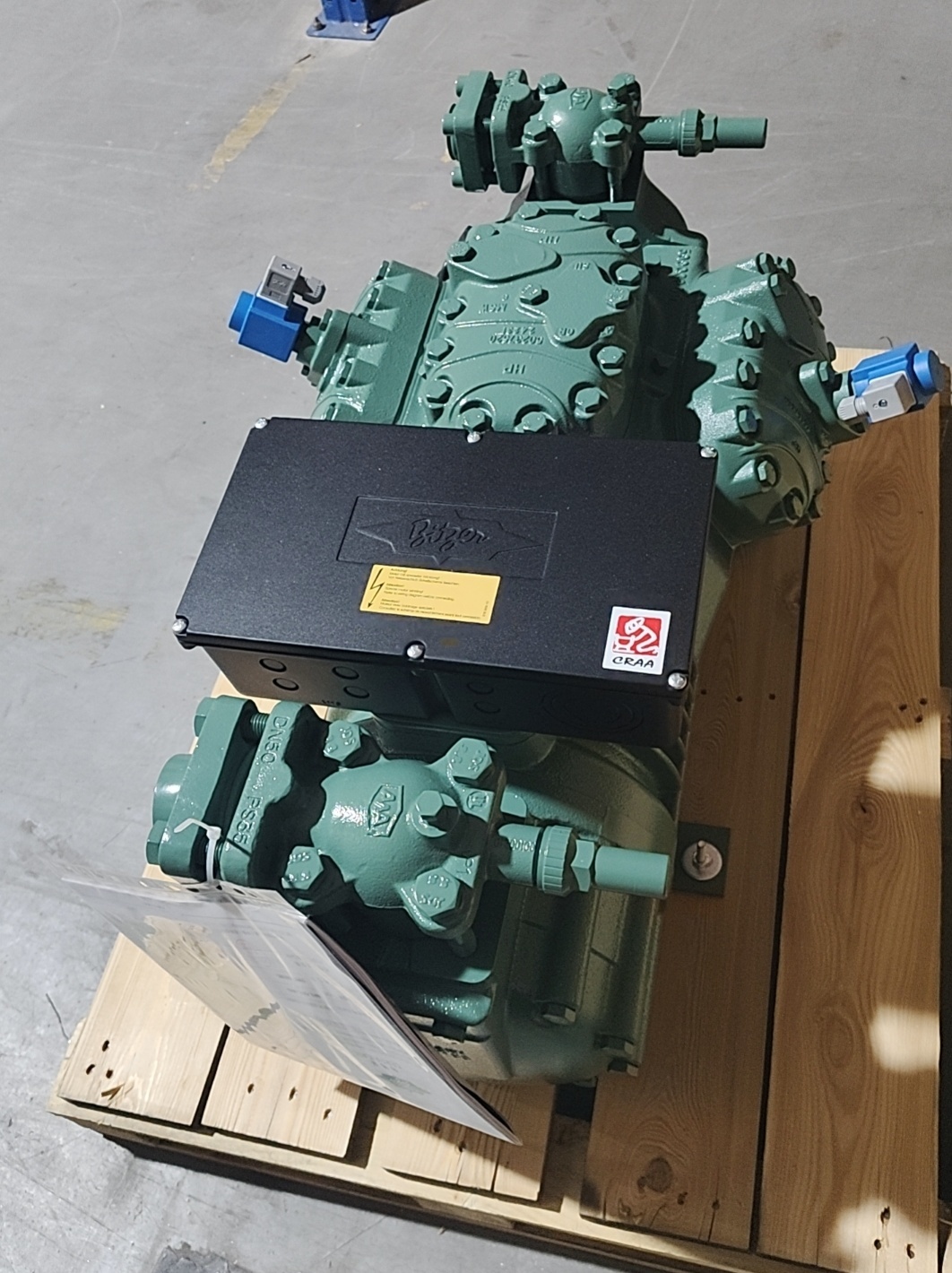

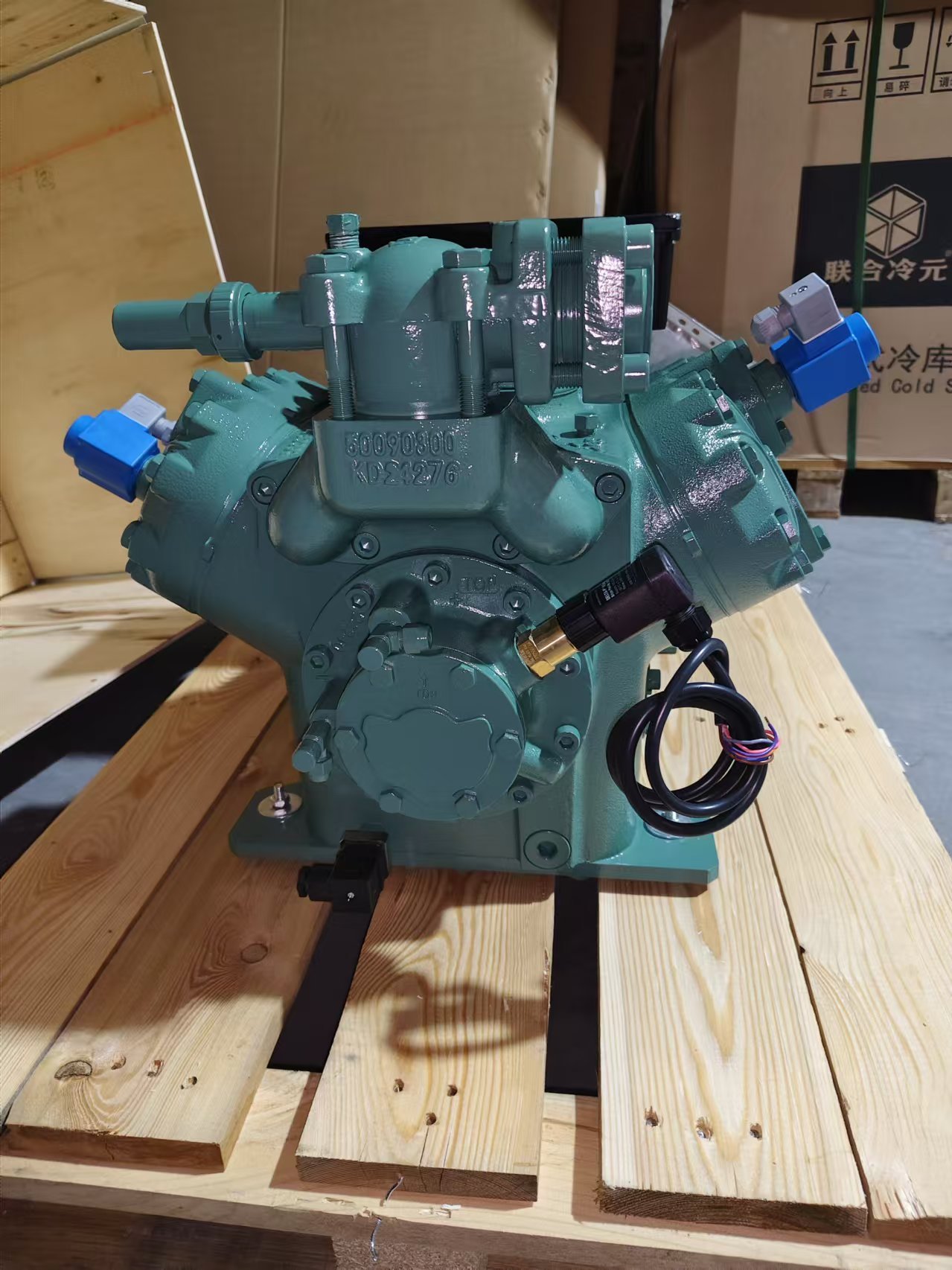

BITZER ECOLINE compressor range operates at lower condensing temperatures and can use a wide range of commonly used refrigerants. BITZER ECOLINE compressors have achieved up to 12% more COP than previous products. Product energy efficiency is improved by further optimizing the design of the compressor valve plate. Reduce compressor internal losses and reduce compressor exhaust pulsation. This series of compressors can also be used in conjunction with frequency converters.

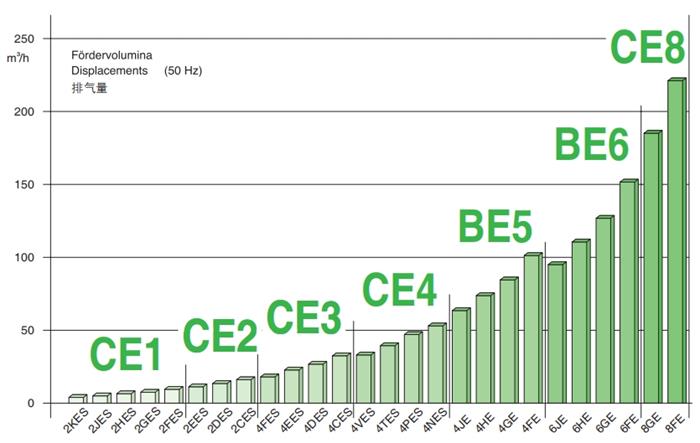

Product Characteristics A closely graduated product range for modern refrigeration,A/C,and heatpump systems Extended annlication range. R134a up to t.=85℃ R404A and R507A up to t=62℃ Energy efficient High cooling capacity and minimum energy requirement: 1 Highly efficient working valves 2 Minimum clearance volume 3 Efficient, large-volume motor 4 Reduced flow losses at low con-densing temperatures Wear resistant drive gear 1 Surface hardened eccentric shaft and crankshaft 2 Low friction bearings and alumini-um pistons 3 Hard chrome plated piston rings Quiet with low vibration 1 Optimized mass balance 2 Low discharge gas pulsations due to special cylinder head design Minimum space requirement Very compact design Robust 1 Solid valve plate design 2 Valves made of impact resistantspring steel 3 Wear resistant drive gear Efficient capacity control 1 Cylinder shut-off or VSD capacitycontrol possible 2 Cylinder shut-off possible from18 m³/h displacement (50 Hz) on -4 cylinder compressor: 50% -6 cylinder compressor: 66%/33% -8 cylinder compressor: 75%/50% 3 Fast cycling cylinder shut-off, e.g.4 cylinder compressor on both cylinder heads: 100% to approx.10% 4 Tandem compressors from 22.7 m³/h to 303 m³/ (50 Hz) 5 Approved parallel operation 6 VSD capacity control from 25 to70 Hz.

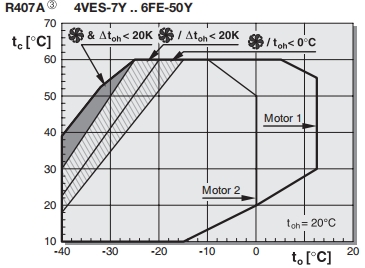

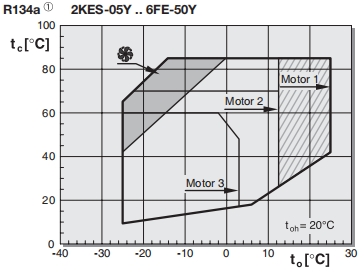

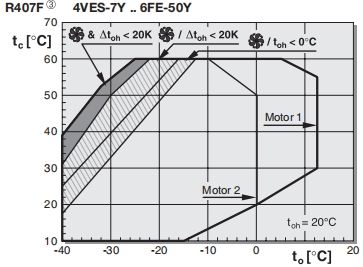

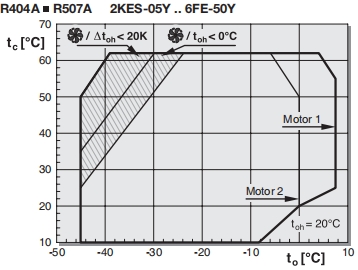

Application limits Relating to 20°C suction gas temperature

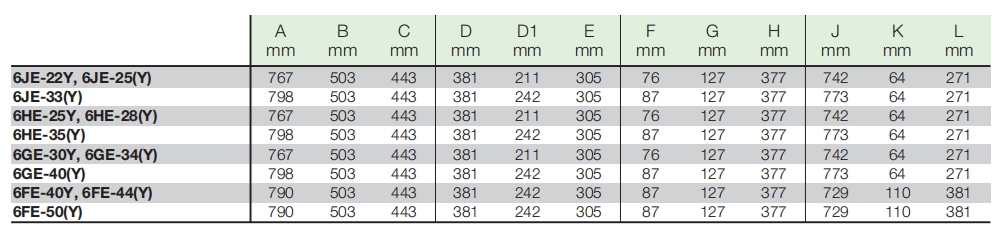

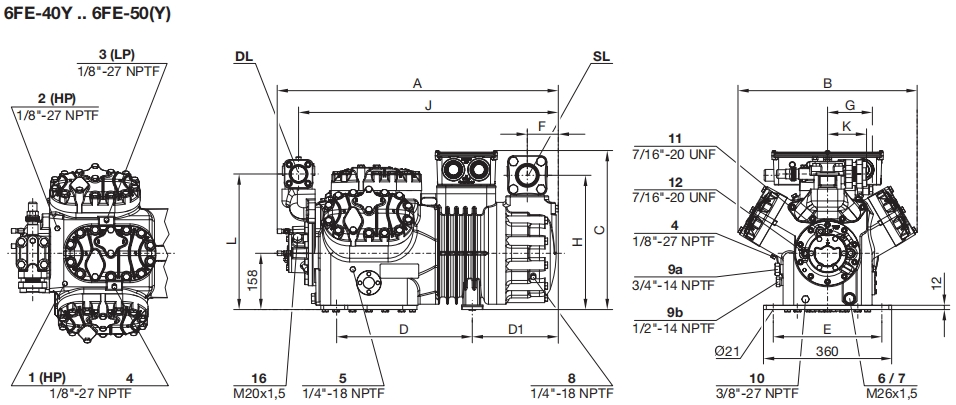

Dimensional Drawings
Connection positions 1 High pressure connection (HP) 2 Discharge gas temp. sensor (HP) or ClC sensor 3 Low pressure connection (LP) 4 ClC System: spray nozzle (LP) 5 Oil fill plug 6 Oil drain 7 Oil filter (magnetic screw) 8 Oil return (oil separator) 9a Gas equalisation (parallel operation) 9b Oil equalisation (parallel operation) 10 Crankcase heater 11 Oil pressure connection + 12 Oil pressure connection - 16 Connection for oil monitoring(oil sensor or differential oil pressure switch "Delta-P") 21 Connection for oil service valve
